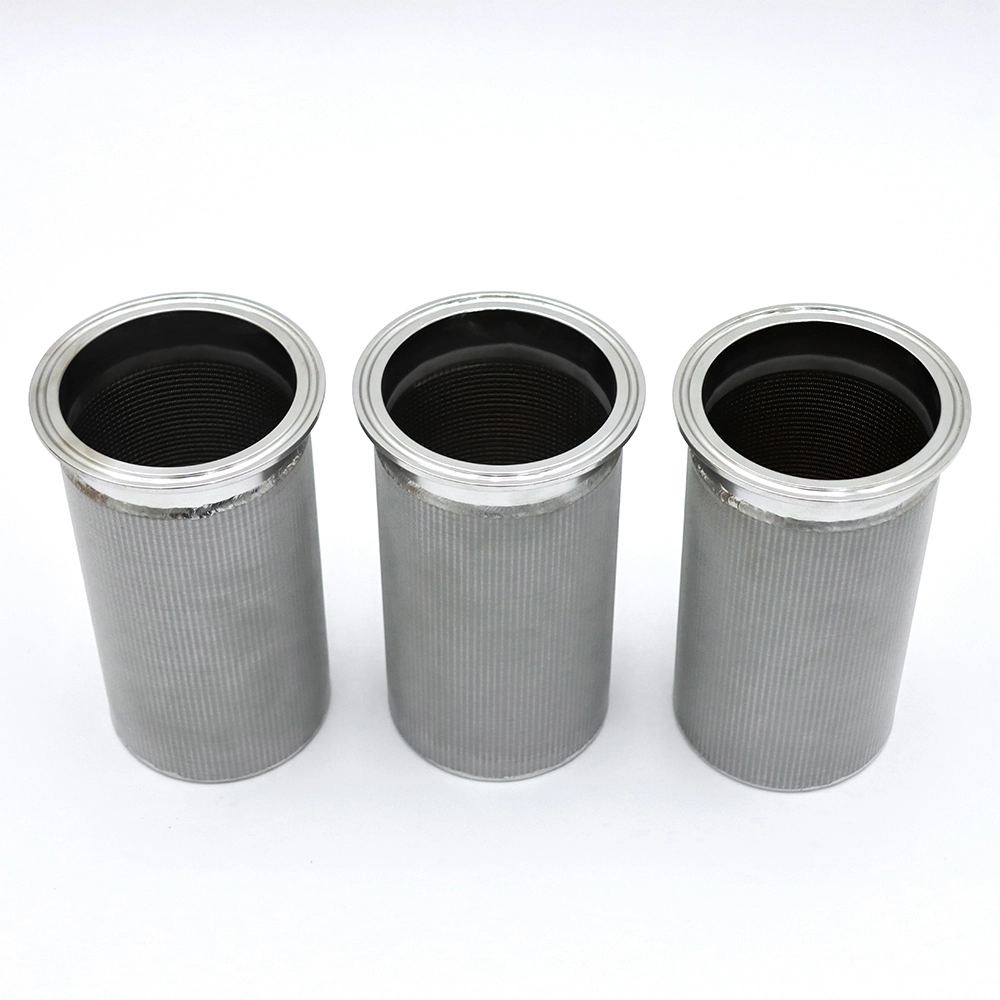

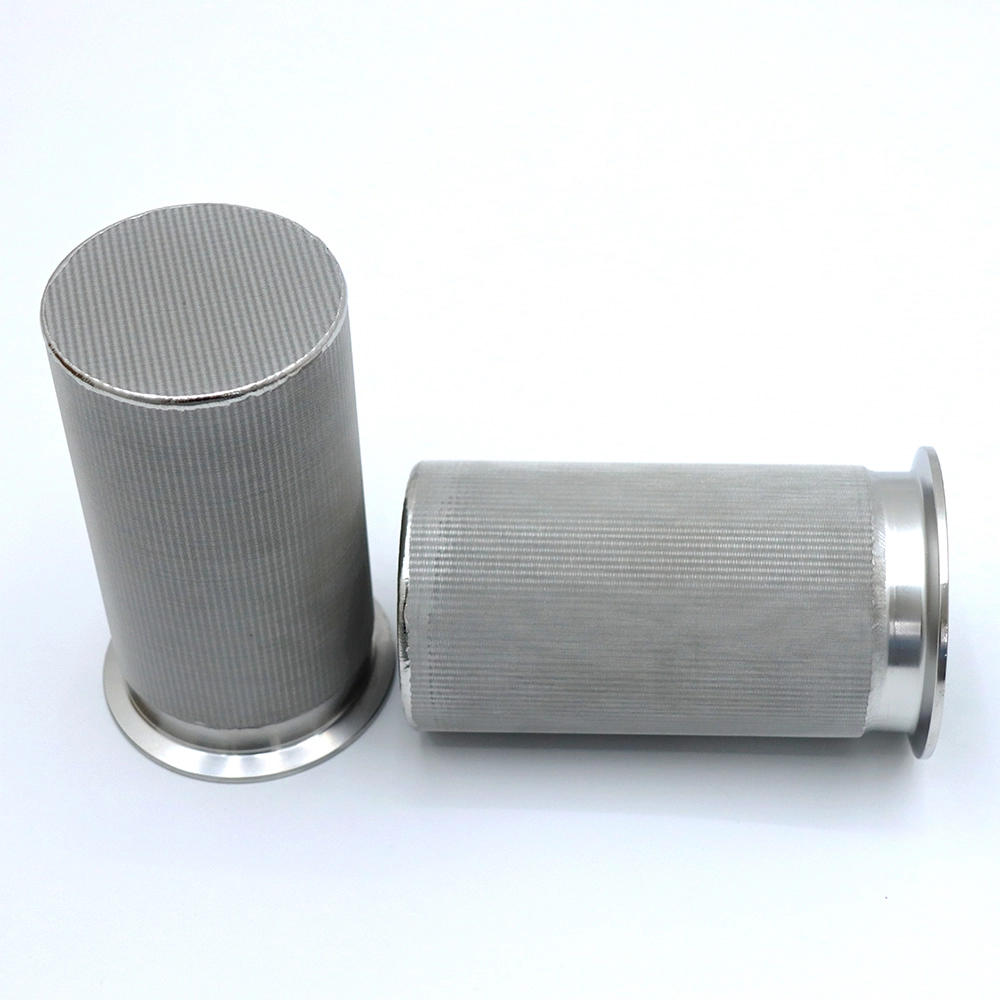

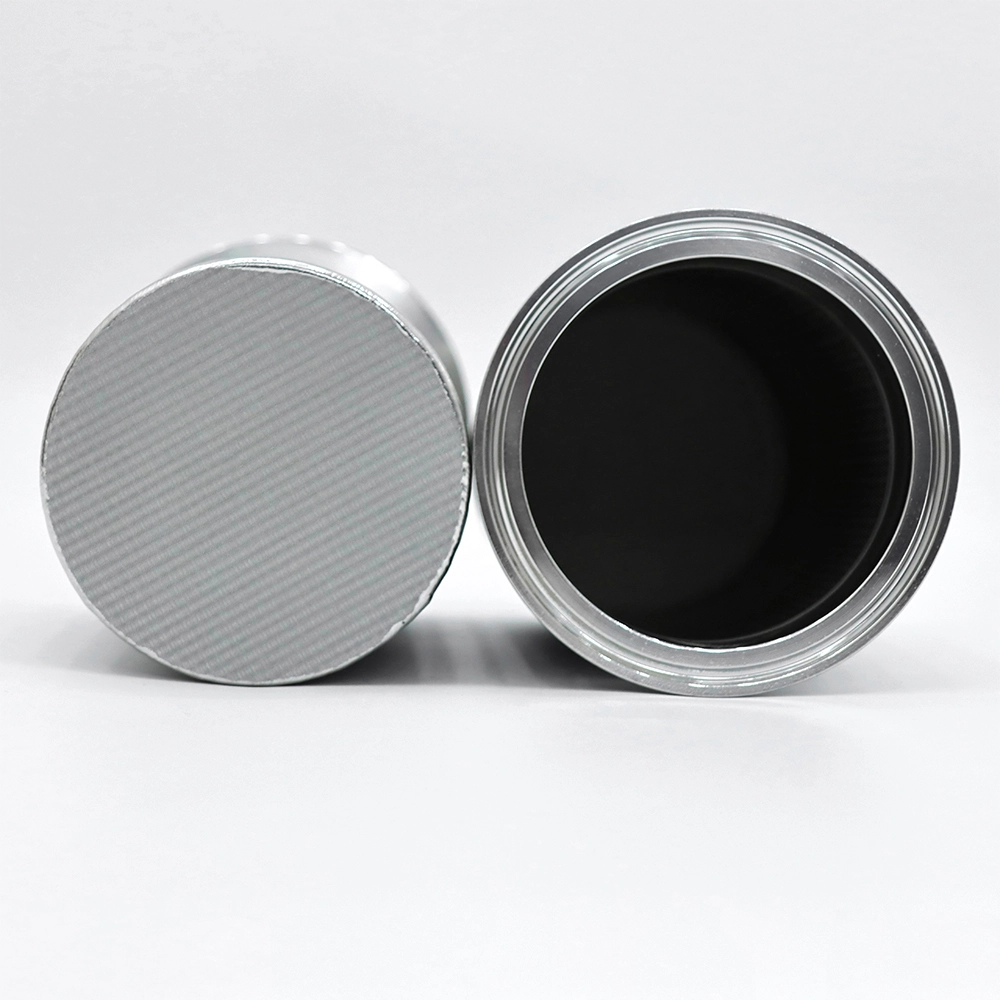

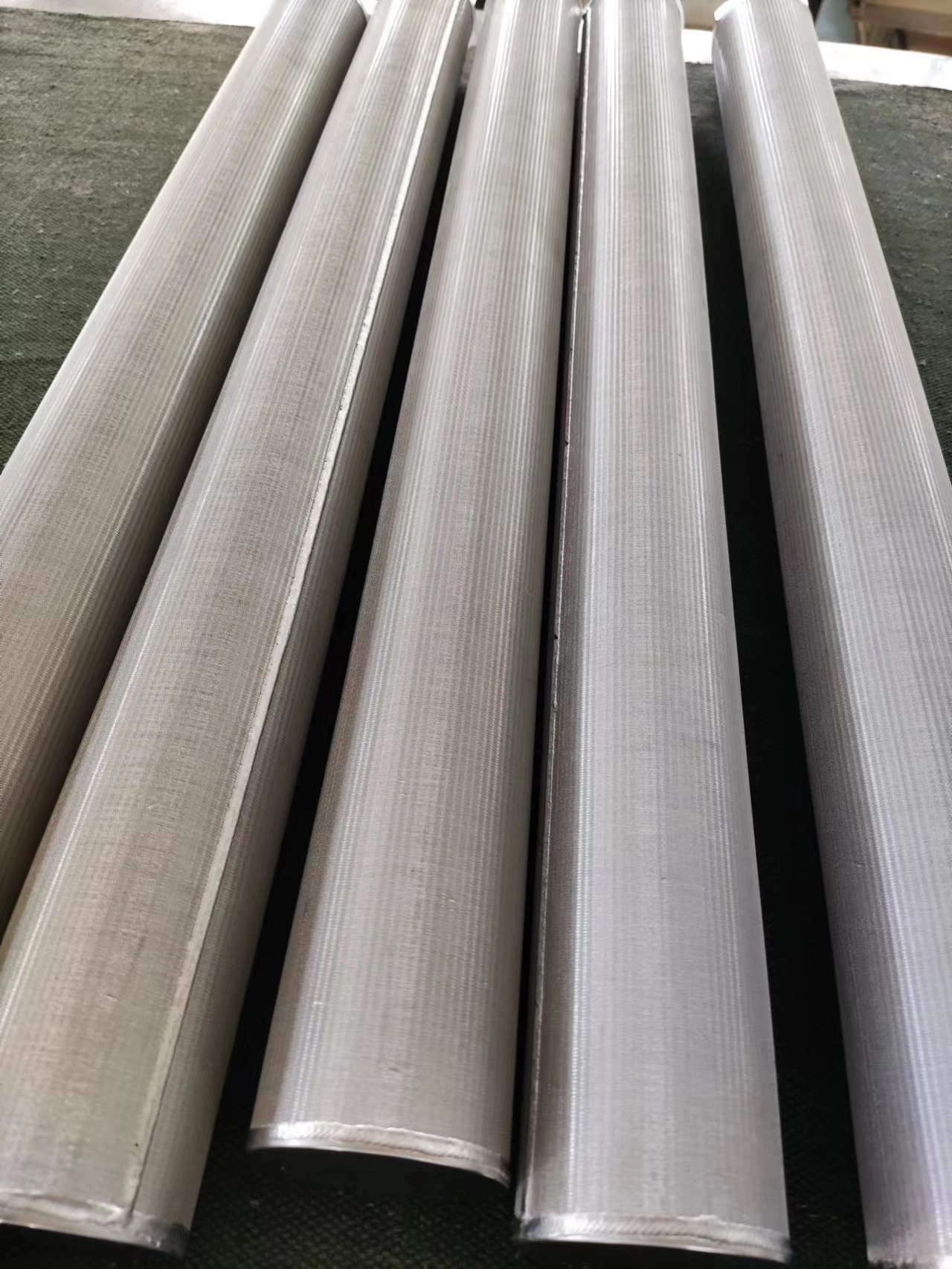

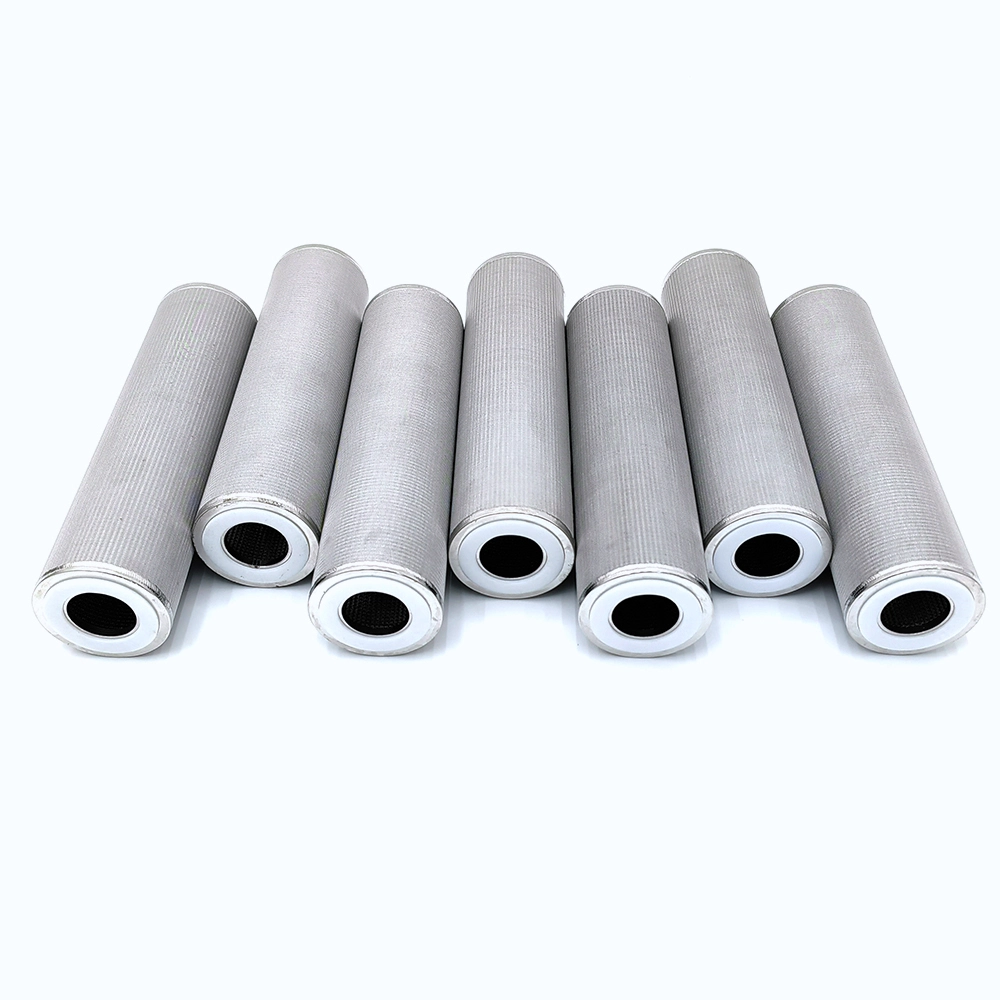

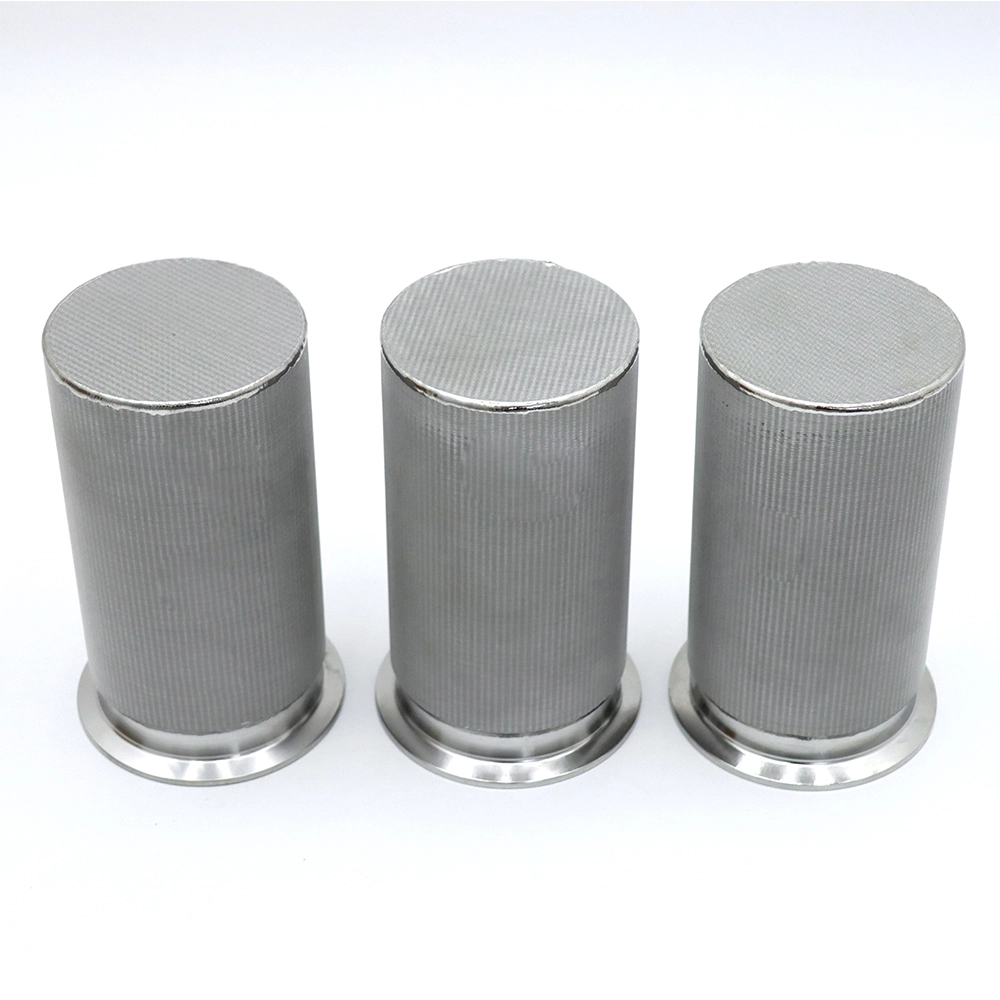

stainless steel filter water

Lvyuan’s sintered stainless steel filter stands as a pivotal filtration element crafted through a meticulous sintering process, with stainless steel serving as the core material.

Material

SUS304/316/3161

Working temperature

-200-6509C

Connection

Standard interface (such as 222,220,226), fast interface connection. thread, flange and pushing rod connection, special custom interface

Working medium

Water, Air, Oil gas and other viscous liquids

Filter Precision

1-300ym

Application

Polyester, oil. Pharmaceutical, food and beverage. Chemical fiber products filtration

Personalized customization:

Whether choosing from these specifications or presenting your unique requirements, Lvyuan ensures a tailored approach to meet your specific needs.

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

INQUIRY NOW

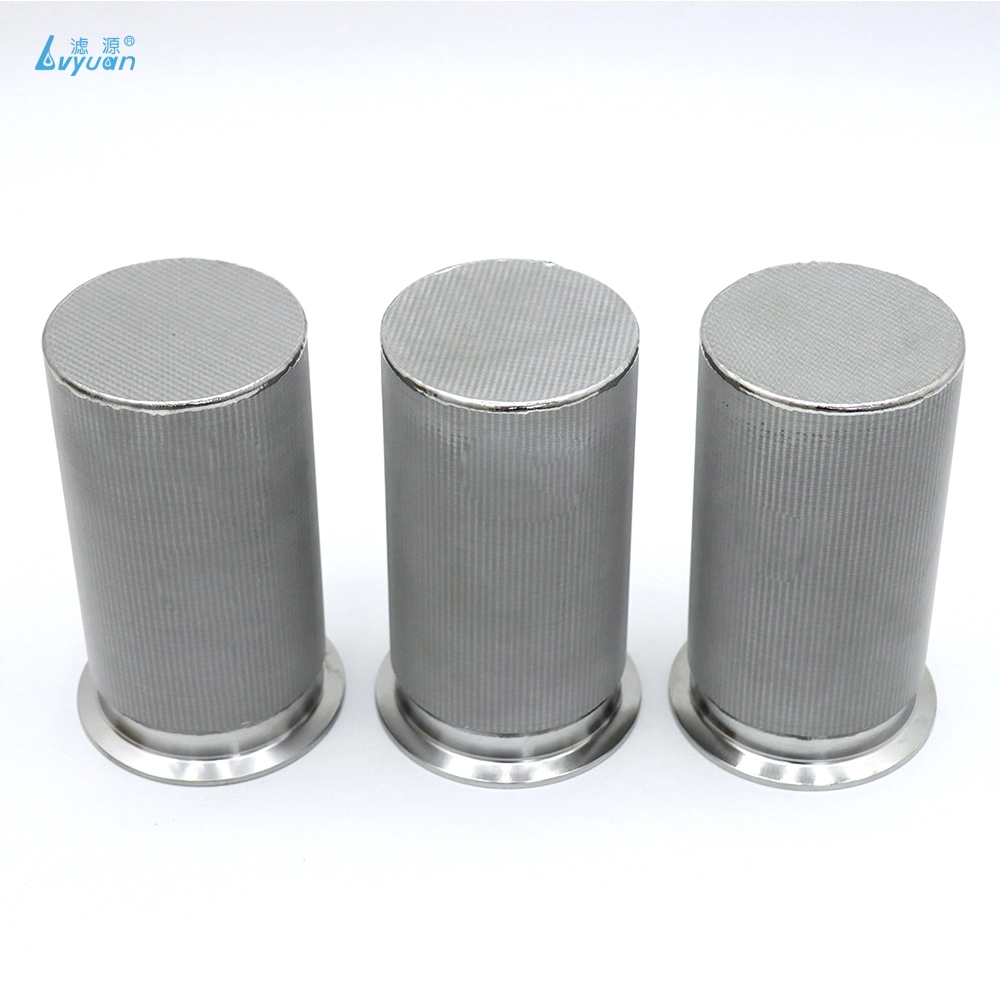

Properties of Lvyuan sintered stainless steel filter

Lvyuan’s sintered stainless steel filter stands as a pivotal filtration element crafted through a meticulous sintering process, with stainless steel serving as the core material. This filtration marvel, akin to its stainless steel filter cartridge counterpart, comprises essential components such as a filter tube, end caps, and an O-ring.

Distinguishing itself by utilizing 100% stainless steel, Lvyuan's commitment ensures the fabrication of sintered filter cartridges capable of withstanding elevated temperatures, resisting corrosion, and exhibiting robust mechanical strength. Positioned as an exemplary filtration component designed to eliminate impurities, sintered stainless steel filters find extensive utility in filtering gases, liquids, or solids.

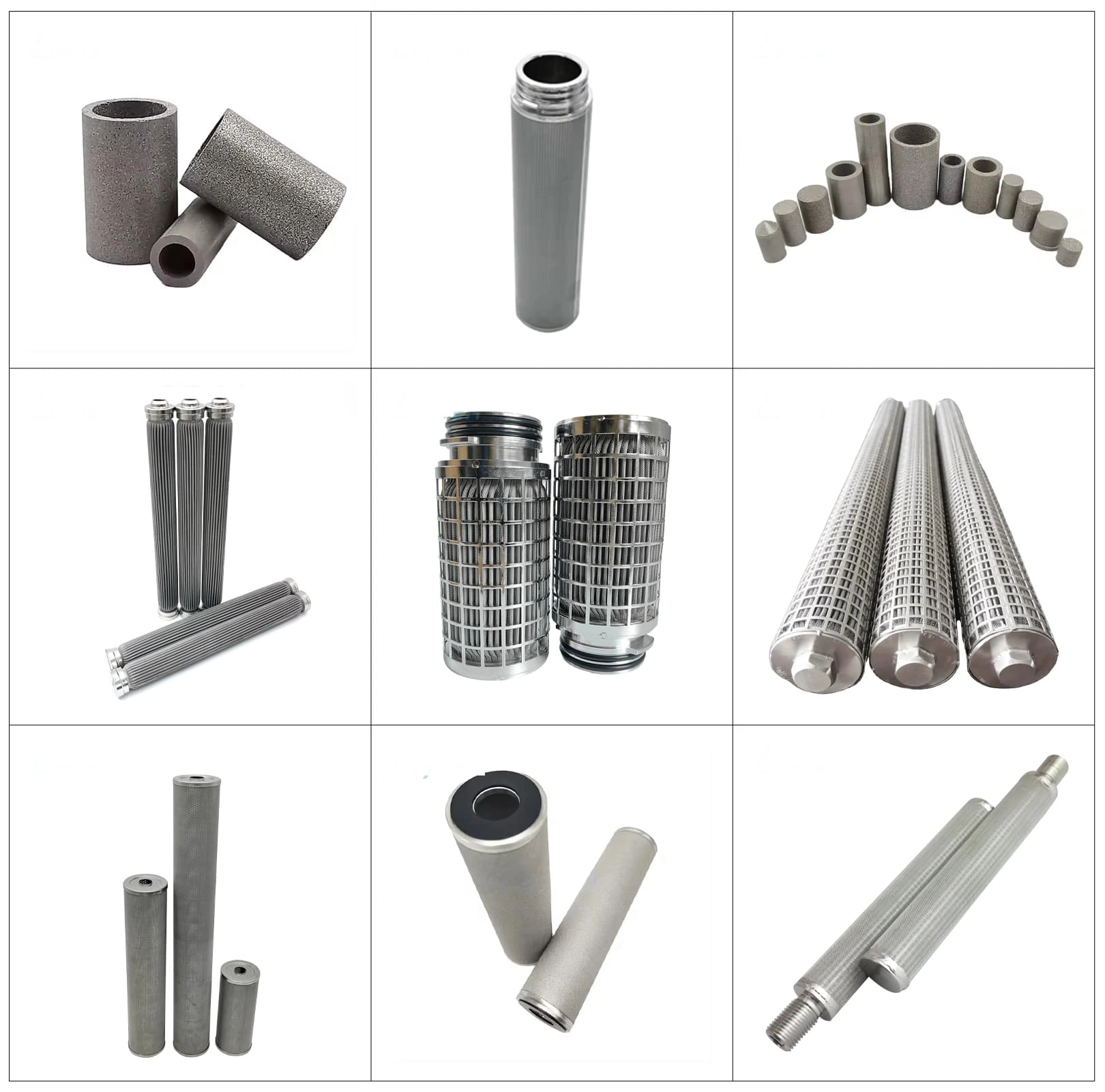

Tailored to specific filtration needs

• Pleated Sintered Filter Cartridge

Offering enhanced surface area for efficient filtration.

• Sintered Candle Filters

Ideal for applications where a candle-shaped filter design is advantageous.

• Sintered Dust Collector Filter Bags

Designed to capture and retain dust particles efficiently.

• Sintered Flame Screen

Ensures effective flame arrestment in diverse industrial settings.

• Stainless Steel Sintered Mesh Filter

Utilizes sintered mesh for versatile and reliable filtration.

Lvyuan's stainless steel sintered filter cartridges stand as a testament to precision engineering, durability, and adaptability, making them indispensable across a spectrum of filtration challenges in gas, liquid, or solid mediums.

Stainless Steel Sintered Filter Features

01. Material Quality

Crafted from 100% stainless steel, it ensures robustness and resistance to corrosion in various environments.

2000-01-01

02. High-Temperature Resilience

Capable of withstanding temperatures up to 816°C, making it suitable for applications involving high-temperature liquids and gases.

2000-01-01

03. Pressure Resistance

Engineered to perform under high-pressure conditions, providing reliability in steam filtration and other demanding environments.

2000-01-01

04. Corrosion Resistance (904L Option)

The option to use 904L stainless steel enhances corrosion resistance, making it ideal for corrosive applications like catalyst recovery.

2000-01-01

05. Versatile Filtration Efficiency

Exhibits filtration efficiency ranging from 60% to an impressive 99.99%, catering to various filtration needs.

2000-01-01

06. High Porosity

With a porosity reaching 90%, it ensures effective filtration while maintaining a high flow rate.

07. Broad Application Spectrum

Suited for diverse filtration industries, including water treatment and gas-liquid separation processes.

08. Reliable Performance

Lvyuan's Stainless Steel Sintered Filter is engineered for durability and consistent performance, ensuring longevity in challenging filtration conditions.

09. Adaptability

The filter's design and features make it adaptable to a wide range of filtration scenarios, providing versatility in application.

Reasons to choose stainless steel sintered filter element

Images Title

As a reputable stainless steel sintered filter cartridge manufacturer in China, Lvyuan is committed to delivering reliable products that adhere to ISO certification standards. To ensure the highest quality, each cartridge undergoes a thorough bubble point test.

0000-00-00

Images Title

Our stainless steel sintered filter cartridge is designed with filtration ratings ranging from 0.2 microns to 200 microns, effectively capturing a wide range of impurities in liquids. Similar to sintered mesh filter cartridges, our products boast a generous filtration area of up to 1000 cm² per 500mm length.

0000-00-00

Images Title

In addition to our standard offerings, Lvyuan provides OEM services for stainless steel sintered filter cartridge manufacturing. We can customize porosity, filtration ratings, and other specifications according to your specific requirements.

0000-00-00

Images Title

For those seeking sintered metal filters in alternative materials, Lvyuan has you covered. Whether it's a sintered titanium filter, sintered nickel filter, or other alloys, rest assured that Lvyuan maintains high-quality standards and exceptional properties across all materials.

Images Title

To discover more about our stainless steel sintered filter cartridge or other Lvyuan sintered filters, feel free to contact us. We look forward to providing you with the perfect filtration solution.

Sintered stainless steel filter Advantages

Durability

Lvyuan's commitment to quality is exemplified in the manufacturing of the Stainless Steel Sintered Filter Cartridge, utilizing 100% stainless steel. The sintering process employed in its creation equips the cartridge to thrive in demanding conditions, handling temperatures up to 816°C and high-pressure environments. This makes it a reliable choice for applications involving steam filtration as well as the filtration of high-temperature liquids and gases.

Adaptability

Opting for 904L as the primary material enhances the corrosion resistance of the stainless steel sintered filter cartridge, making it suitable for deployment in corrosive environments such as catalyst recovery processes. The versatility of this filter cartridge extends its utility to a range of industries, particularly those requiring resilience in the face of corrosive challenges.

High performance

The filtration efficiency of Lvyuan's stainless steel sintered filter cartridge spans from 60% to an impressive 99.99%, with a porosity that reaches 90%. This broad efficiency spectrum enables its deployment across various filtration industries, including water treatment and gas-liquid separation processes.

Reliability

Lvyuan's sintered stainless steel filters stands as a testament to durability, adaptability, and high-performance filtration, ensuring reliability in diverse and demanding filtration applications.

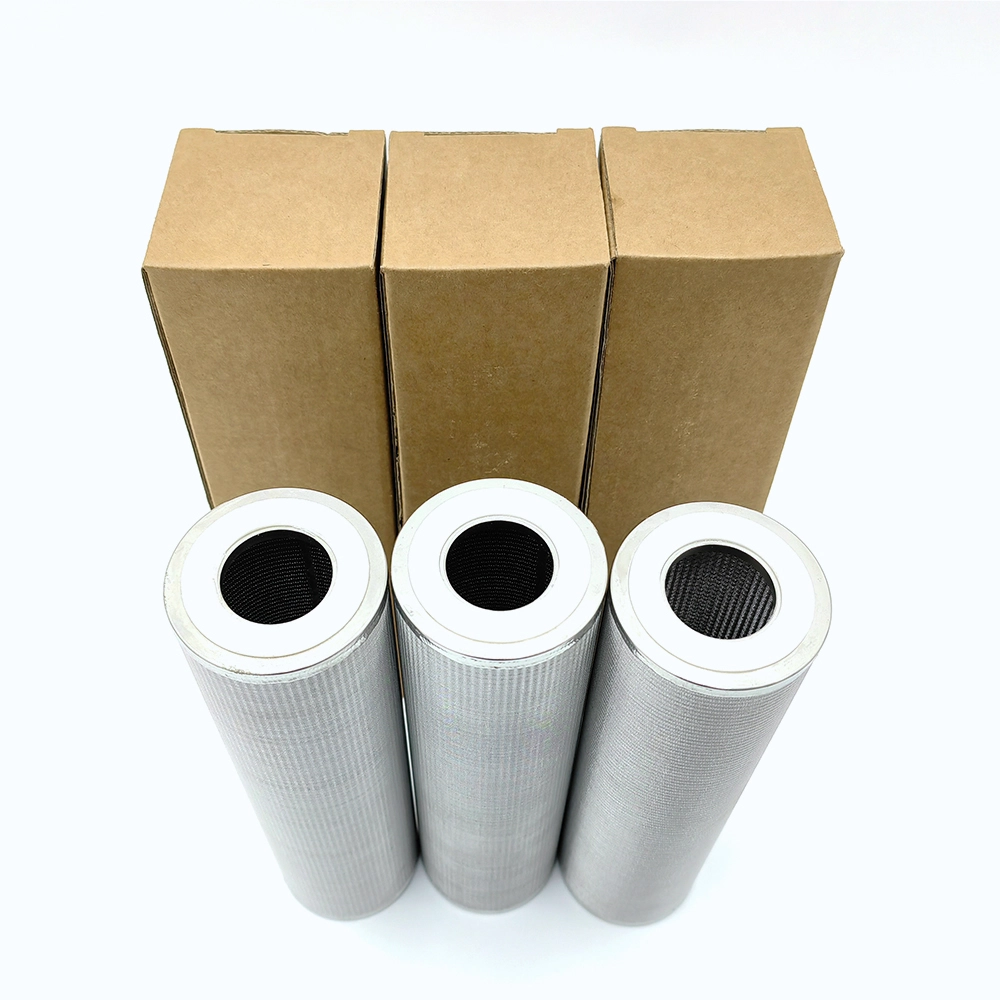

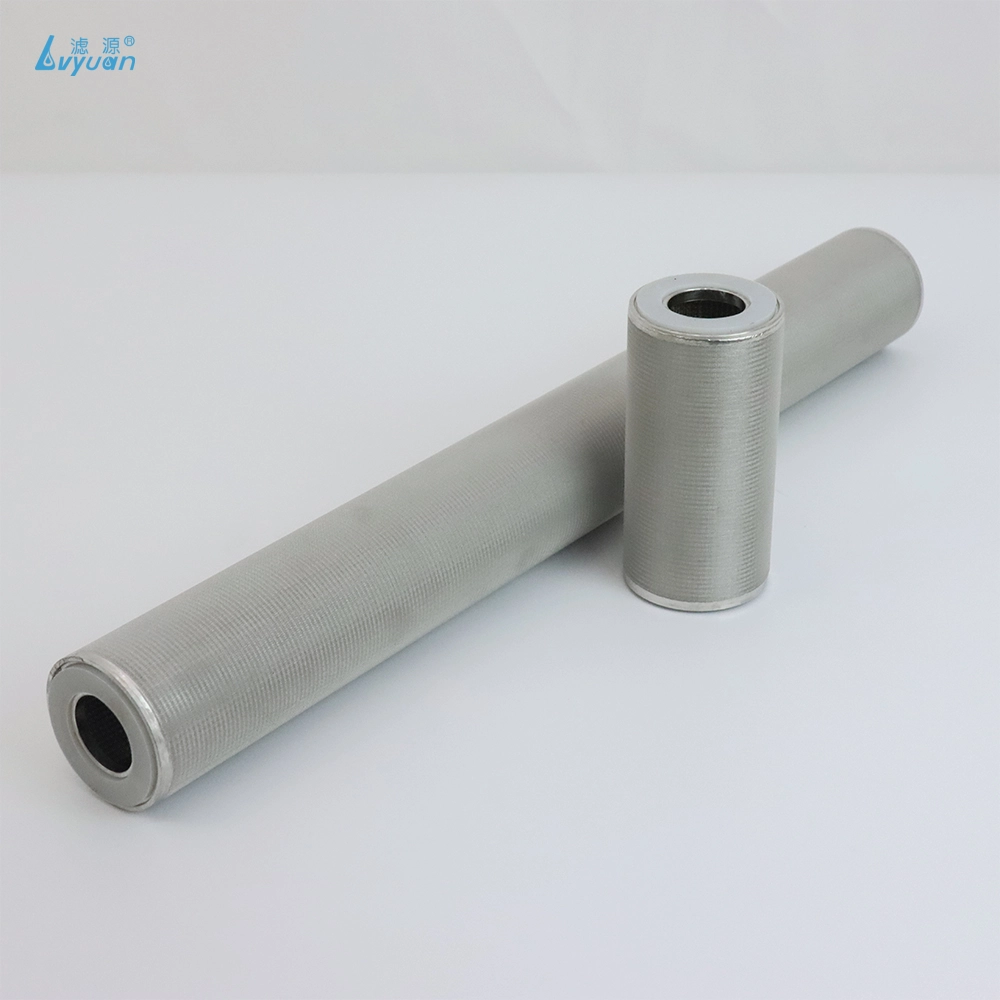

Stainless Steel Sintered Filter Cartridge Specifications

Explore the comprehensive parameters defining Lvyuan's stainless steel sintered filter cartridge, providing a foundation for versatile and reliable filtration solutions. Whether choosing from these specifications or presenting your unique requirements, Lvyuan ensures a tailored approach to meet your specific needs.

2000-01-01

Raw Materia

Choose from stainless steel options, including 304, 304L, 316, 316L, and 904L, ensuring compatibility with diverse applications.

2000-01-01

Working Temperature

Operate within a broad temperature range from -200°C to 816°C, showcasing the cartridge's adaptability to extreme thermal conditions.

2000-01-01

Operating Pressure Differential

Withstand pressure differentials up to 4 bar, highlighting the cartridge's resilience under varying operational pressures.

2000-01-01

Flow Rate

Achieve efficient filtration with a flow rate ranging from 25 to 30 rpm per 10" length, providing flexibility in meeting specific flow requirements.

2000-01-01

Filtration Efficiency

Experience superior filtration with efficiency ranging from 60% to 99.99%, ensuring effective removal of impurities.

2000-01-01

Porosity

Benefit from high porosity levels, reaching up to 90%, optimizing fluid permeability and filtration performance.

Filtration Rating

Tailor filtration to your needs with a rating spanning from 0.2 to 200 microns, catering to a diverse range of particle sizes.

Dimensions

Outer Diameter: 64mm Inner Diameter: 28mm Common Lengths: 5", 10", 20", 30", 40", allowing for flexibility in fitting various filtration systems.

Surface Area

Gain efficient filtration with a surface area reaching up to 1000cm2 per 500mm length, ensuring optimal particle capture.

O-ring Material

Customize the cartridge further with a choice of O-ring materials, including Silicone, EPDM, Viton, and PTFE, providing compatibility with different environments.

Connector Options

Select the connector type that suits your setup, with options including DOE, Code, Thread, Flange, SOE, 222, and 226, facilitating seamless integration.

Applications of Stainless Steel Sintered Filter Cartridge

Lvyuan's Stainless Steel Sintered Filter Cartridges find versatile applications across various industries, owing to their robust design and high-performance filtration capabilities. Key applications include: water treatment, gas-liquid separation, steam filtration, high-temperature liquids and gases, catalyst recovery, chemical processing, oil filtration, pharmaceutical industry, food and beverage industry, and industrial filtration.

We’ve got answers.

Browse some answers to our most common questions, or you can drop us a line to ask something else.

See all FAQs

Sintered Metal Filter

In which industries are industrial sintered metal filter cartridges commonly used?

These cartridges find applications in petrochemicals, pharmaceuticals, water treatment, food processing, automotive, aerospace, and many other industries where precise and reliable filtration is essential.

What is the temperature range that industrial sintered metal filter cartridges can handle?

The temperature range varies based on the material used, but they can typically withstand temperatures from -200°C to 1000°C or even higher for certain alloys.

What is an industrial sintered metal filter cartridge?

An industrial sintered filter cartridge is a filtration component made through a sintering process, combining metal powders to create a porous structure. These cartridges are designed for industrial applications to remove contaminants from liquids and gases.

What materials are commonly used in industrial-sintered metal filter cartridges?

Common materials include stainless steel (304, 316, and 316L), bronze, Inconel, Monel, titanium, and other alloys, depending on the specific requirements of the application.

What are the key advantages of using industrial-sintered metal filter cartridges?

Advantages include high filtration efficiency, durability, wide temperature resistance, chemical compatibility, customization options, high flow rates, ease of cleaning, and versatility across various industries.

What is the cleaning process for industrial sintered metal filter cartridges?

Cleaning methods include backwashing, ultrasonic cleaning, chemical cleaning, or a combination of these, depending on the type of contaminants and the cartridge material.

How often should industrial sintered metal filter cartridges be replaced?

The replacement frequency depends on the operating conditions and the level of contaminants in the process. Regular inspection and monitoring help determine the optimal replacement schedule.

How can I select the right industrial sintered filter cartridge for my application?

Consult with the manufacturer or supplier, providing details about your specific requirements, such as filtration needs, operating conditions, and industry standards, to receive guidance on selecting the most suitable cartridge for your application.

Can industrial sintered metal filter cartridges be customized?

Yes, these cartridges can be customized in terms of dimensions, filtration ratings, materials, and end connections to suit the specific needs of different industrial processes.

How often should industrial-sintered metal filter cartridges be replaced?

The replacement frequency depends on the operating conditions and the level of contaminants in the process. Regular inspection and monitoring help determine the optimal replacement schedule.
