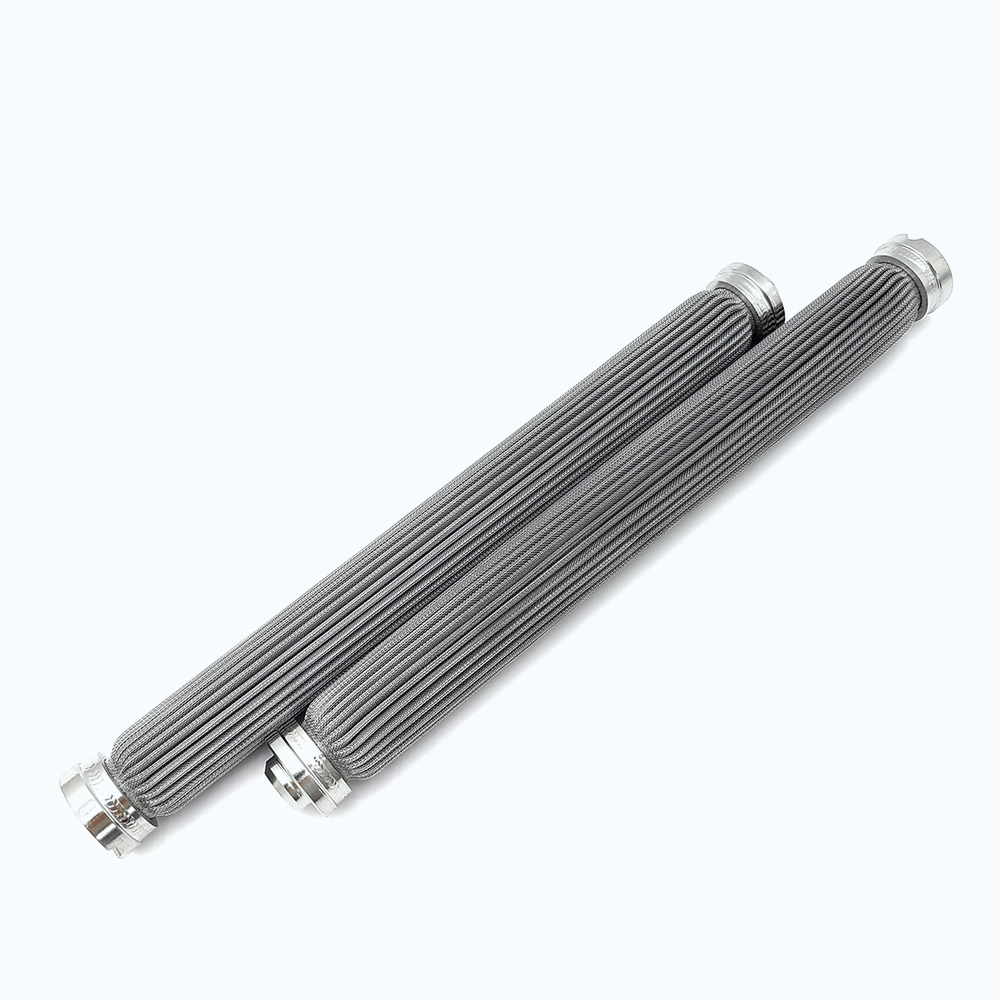

Stainless steel pleated filter cartridge
Lvyuan Stainless Steel Pleat Filter Cartridge constructed from high-quality SS 304 or SS 316L material, this filter exhibits exceptional resistance to high temperatures and rust.
Personalized customization:
Whether choosing from these specifications or presenting your unique requirements, Lvyuan ensures a tailored approach to meet your specific needs.
After-Sales Service and Warranty:
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

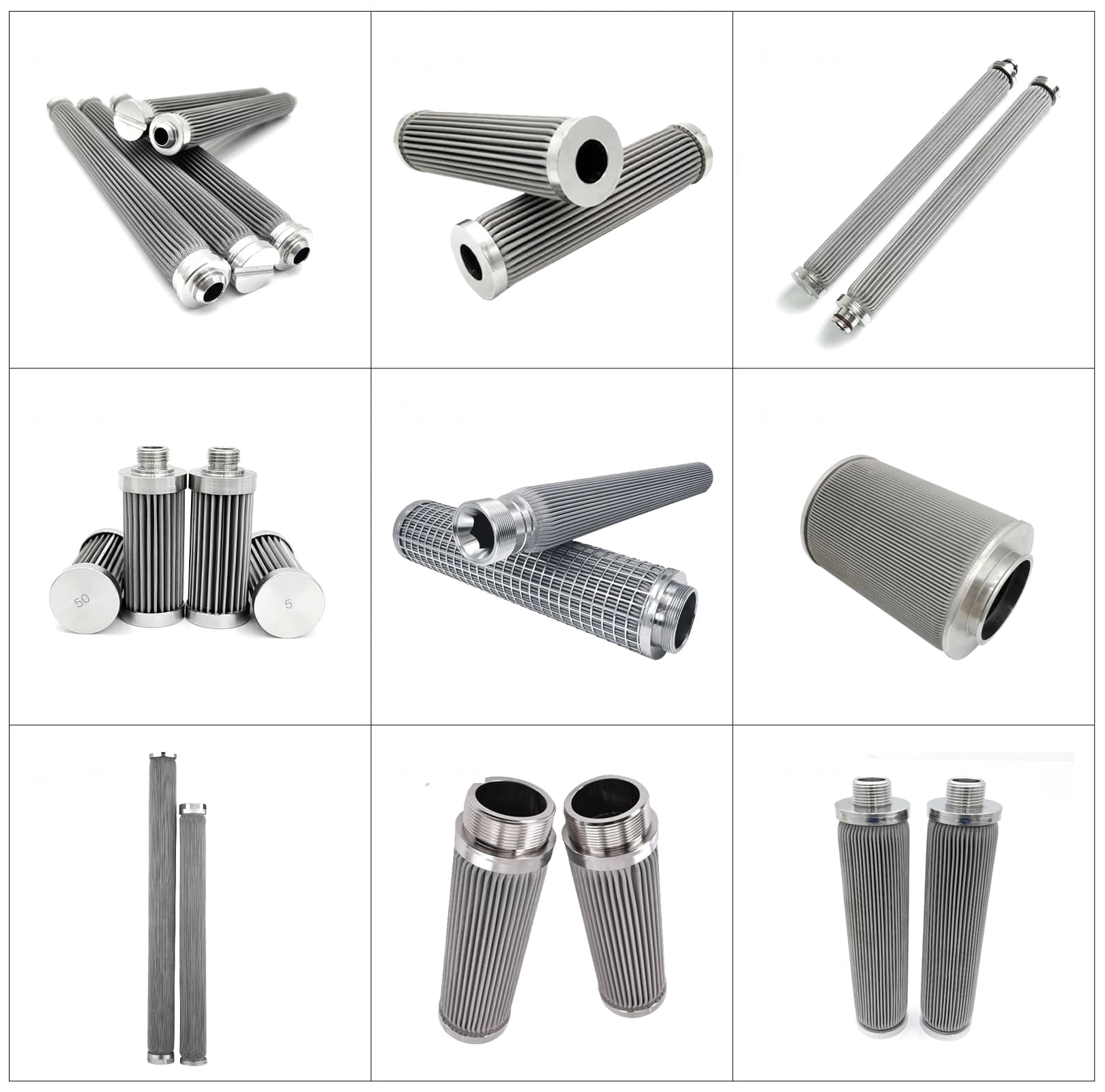

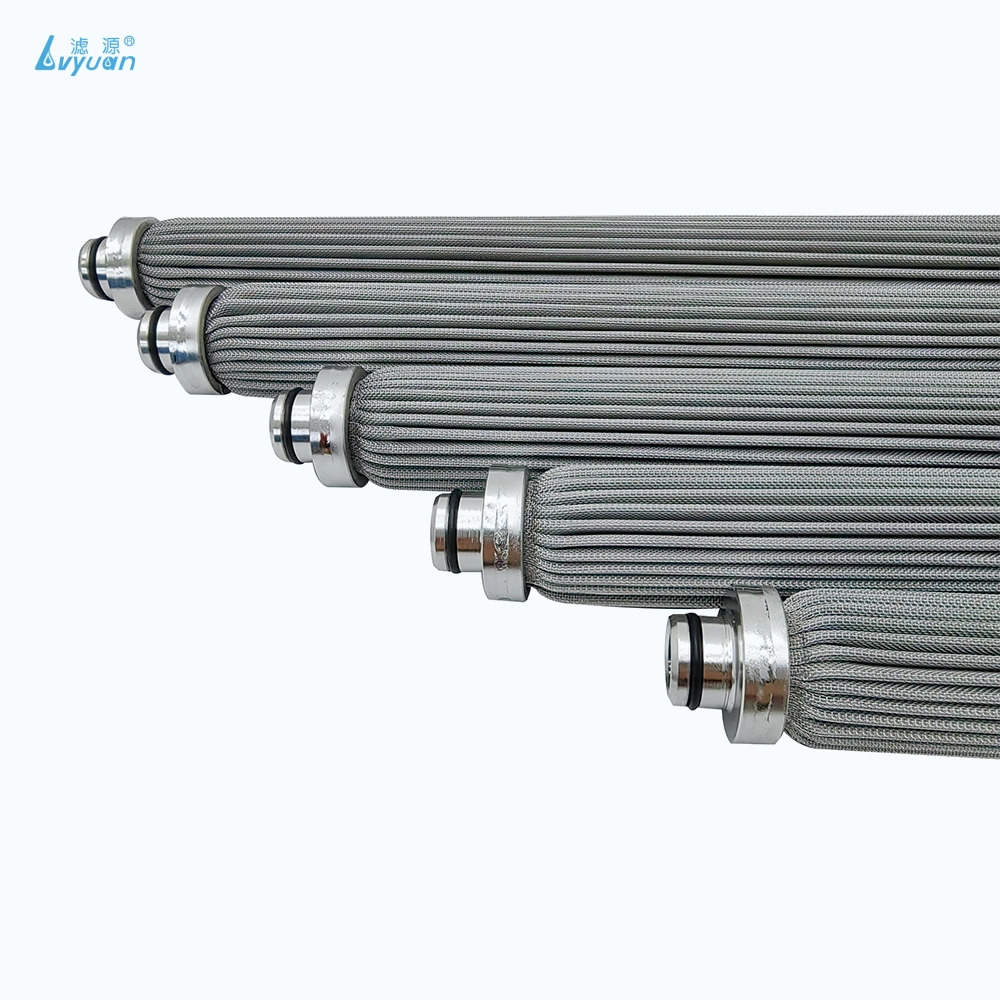

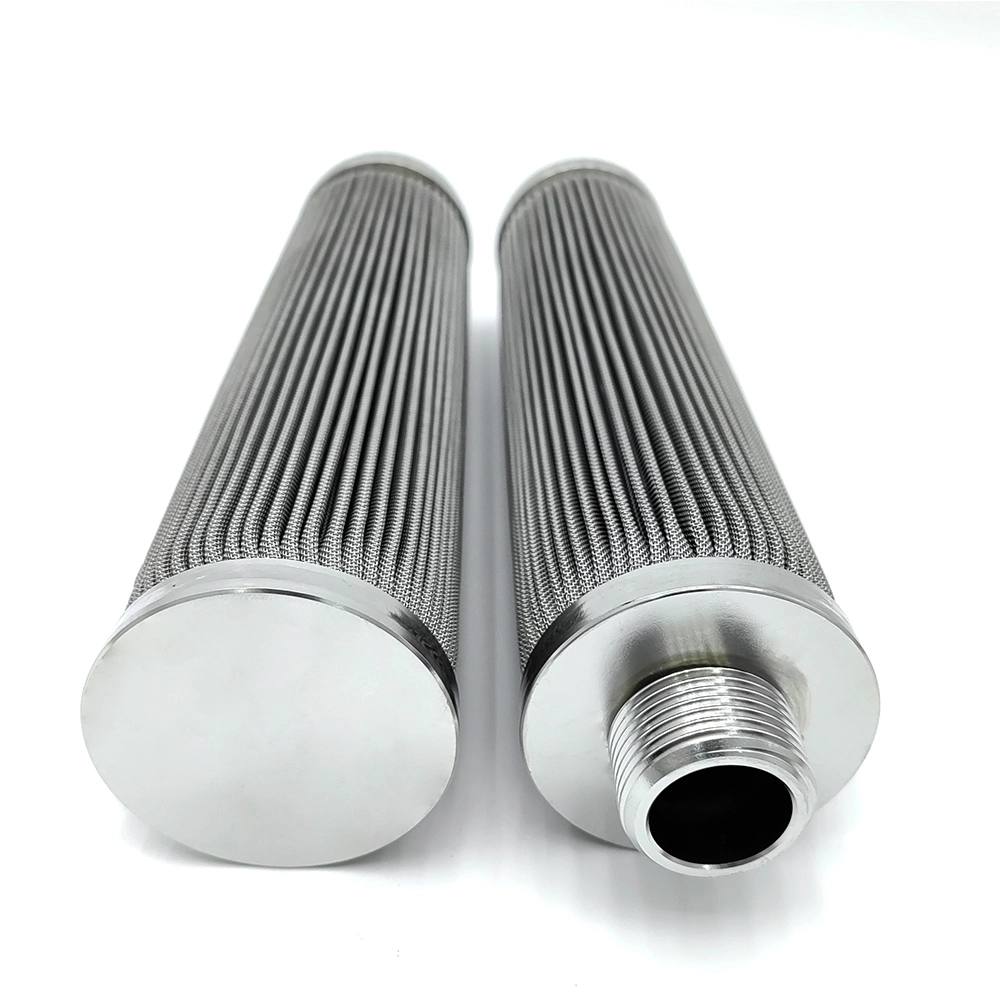

Stainless steel Pleated filter cartridge
Lvyuan Stainless Steel Pleat Filter Cartridge constructed from high-quality SS 304 or SS 316L material, this filter exhibits exceptional resistance to high temperatures and rust. Designed to excel in the filtration of liquids and gases, it stands as the optimal choice for applications where efficient particle removal is paramount. The robust construction ensures durability, making it a reliable solution for a wide range of industrial filtration needs. Trust in Lvyuan fo cutting-edge technology that delivers superior performance and longevity in your filtration processes.
Stainless steel pleated filter cartridge Specifications
• Standard Material: SUS316L or Iron-Chromium-Aluminum Fiber;
• Standard Sizes: 100–1500mm, with customizable diameters such as 25, 32, 40, and 50mm;
• Filtration Precision: 1-200 microns;
• Special specifications can be customized according to customer requirements;
• Interface Types: 222, 220, 226, standard interface, threaded interface, custom interface, rod connection, flange connection, quick interface connection, etc.
Material Introduction
Woven Wire Mesh
It is a surface filtration media that removes particles by trapping them on the surface of the filter media. Unlike depth-based filtration products, woven wire mesh has an "absolute" micron rating based on the selected weave, providing known application sizes. Wire mesh is typically made from 304 or 316 stainless steel but other material can be used depending on the application.
Limited micron sizes are available. Please contact the sales department if needed. Typical absolute micron ratings include: 0 microns 15 microns 18 microns 25 microns, 75 microns 100 microns 150 microns 300 microns, etc.
Sintered Fiber Felt
Sintered fiber felt, commonly referred to as random metal fiber (sintered), stands as a depth filtration medium designed to effectively eliminate particles by entrapping them within the intricate structure of the filtration process. The manufacturing of sintered felt involves a meticulous process of pressing, heating, and bonding metal fibers at elevated temperatures. This unique manufacturing method determines the micron rating of the filtration media, and the efficiency of sintered felt is often characterized by its filtration capabilities. Available in 316/316L stainless steel, sintered fiber felt offers a diverse filtration range spanning from 1 to 100 microns, making it a versatile solution for various industrial applications.
Stainless steel pleated filter cartridge advantages
The Stainless Steel Pleated Filter Cartridge offers several advantages, making it a versatile and reliable choice for various filtration applications:
Application Areas
The Stainless Steel Pleated Filter Cartridge finds application across various industries and processes due to its versatile and efficient filtration capabilities. Some common applications include:
• Polymer Melt Filtration
Used in the production of polymers, including polyester, long fibers, short fibers, and thin films, to ensure the removal of impurities from polymer melts and enhance the quality of the end product.
• High-Temperature Gas and Steam Filtration
Applied in processes where the filtration of high-temperature gases and steam is required, ensuring the purity of these mediums in industrial applications such as power generation and manufacturing.
• High-Temperature Liquid Filtration
Ideal for filtering high-temperature liquids, including those with viscosity, in industries such as petrochemicals, where maintaining fluid purity is crucial for operational efficiency.
• Viscous Fluid Filtration
Employed in filtering viscous fluids, including those found in food processing, pharmaceuticals, and specialty chemical manufacturing, ensuring the removal of particles and contaminants.
• Chemical Processing
Utilized in chemical processing industries for the filtration of corrosive substances, acids, and alkalis, owing to the stainless steel construction that provides excellent corrosion resistance.
• Oil and Gas Industry
Applied in oil and gas exploration and refining processes for the filtration of various fluids, including crude oil and refined products, to maintain the integrity of equipment and enhance overall system efficiency.
• Water Treatment
Used in water treatment plants for the filtration of water, especially in applications where high-temperature water needs to be treated or when dealing with challenging contaminants.
• Pharmaceutical Manufacturing
Employed in pharmaceutical manufacturing processes to ensure the removal of particulate matter and impurities from liquids and gases, contributing to the production of high-quality pharmaceutical products.
• Aerospace Industry
Applied in aerospace manufacturing processes for the filtration of fluids and gases used in critical applications, where precision and reliability are essential.
• Food and Beverage Processing
Used in the food and beverage industry for the filtration of liquids and gases, ensuring compliance with hygiene and safety standards in the production of consumable products.
We’ve got answers.
Browse some answers to our most common questions, or you can drop us a line to ask something else.
Sintered Metal Filter
Can industrial sintered metal filter cartridges be customized?
Yes, these cartridges can be customized in terms of dimensions, filtration ratings, materials, and end connections to suit the specific needs of different industrial processes.
How often should industrial-sintered metal filter cartridges be replaced?
The replacement frequency depends on the operating conditions and the level of contaminants in the process. Regular inspection and monitoring help determine the optimal replacement schedule.
What is the cleaning process for industrial sintered metal filter cartridges?
Cleaning methods include backwashing, ultrasonic cleaning, chemical cleaning, or a combination of these, depending on the type of contaminants and the cartridge material.
What is an industrial sintered metal filter cartridge?
An industrial sintered filter cartridge is a filtration component made through a sintering process, combining metal powders to create a porous structure. These cartridges are designed for industrial applications to remove contaminants from liquids and gases.
What materials are commonly used in industrial-sintered metal filter cartridges?
Common materials include stainless steel (304, 316, and 316L), bronze, Inconel, Monel, titanium, and other alloys, depending on the specific requirements of the application.
What are the key advantages of using industrial-sintered metal filter cartridges?
Advantages include high filtration efficiency, durability, wide temperature resistance, chemical compatibility, customization options, high flow rates, ease of cleaning, and versatility across various industries.
Are industrial sintered metal filter cartridges environmentally friendly?
Yes, these cartridges are environmentally friendly due to their reusability and longer lifespan, contributing to reduced waste generation compared to disposable filters.
How can I select the right industrial sintered filter cartridge for my application?
Consult with the manufacturer or supplier, providing details about your specific requirements, such as filtration needs, operating conditions, and industry standards, to receive guidance on selecting the most suitable cartridge for your application.
In which industries are industrial sintered metal filter cartridges commonly used?
These cartridges find applications in petrochemicals, pharmaceuticals, water treatment, food processing, automotive, aerospace, and many other industries where precise and reliable filtration is essential.
What is the temperature range that industrial sintered metal filter cartridges can handle?
The temperature range varies based on the material used, but they can typically withstand temperatures from -200°C to 1000°C or even higher for certain alloys.
Want to talk to us
Get in touch
Please fill in the form below. We aim to reply within 1 business day.
Sintered powder metal filters
Sintered powder metal filters are crafted from compressed and sintered metal powders, forming a porous structure. Porosity: 28%-50% Permeability: 0.02-20L/cm²minPa Pressure Resistance: 0.5Mpa Temperature Resistance: Less than 280℃
Sintered wire mesh filter
Benefit from outstanding high-pressure resistance and consistent filtration efficiency with Lvyuan's sintered metal mesh. Our sintered wire mesh finds versatile applications in diffuser screens, centrifuges, breather vents, fluidized beds, chromatography, polymer processing, petrochemical industries, hydraulic filters, and more.

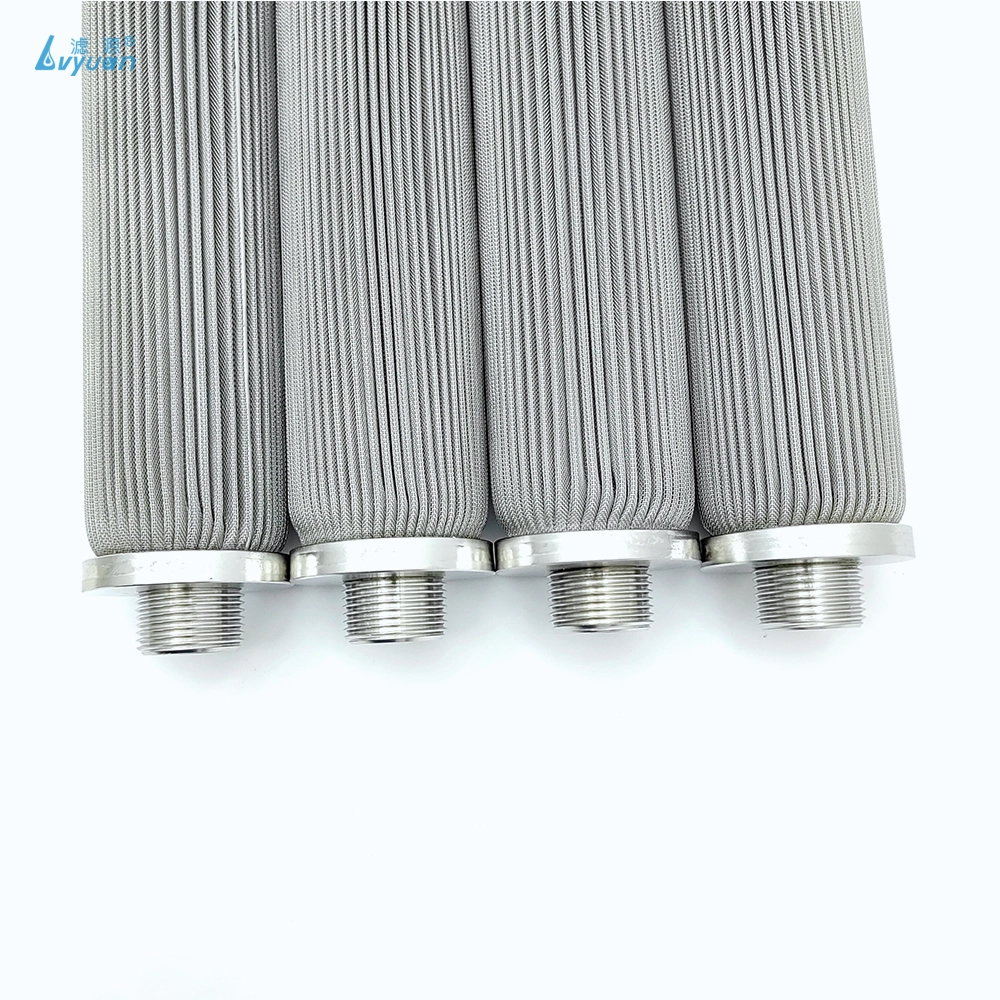

stainless steel filter water
